Leading Roller Track Manufacturers in Pune & Across India
Technovision Engineers Pvt. Ltd. is a leading manufacturer, supplier, and exporter of roller tracks and placons in India. ISO 9001-2015 certified and headquartered in Pune, Maharashtra, we supply 40mm and 80mm roller track systems built from high-quality materials, at competitive prices, serving warehouses, factories, and assembly operations across India.
What Are Roller Tracks (Placons)?
Roller tracks, also known as placons, are gravity-driven conveyor tracks used inside flow racks, assembly lines, and storage systems to move goods or components smoothly from one point to another. Goods are loaded at one end and travel forward on small rollers by gravity, eliminating the need for manual sliding or motorised conveyance over short distances.
Our roller tracks are manufactured with small wheel pitches that ensure uniformly distributed load contact across the length of the track, reducing product damage and delivering consistent, smooth flow.
Our Range of Roller Tracks

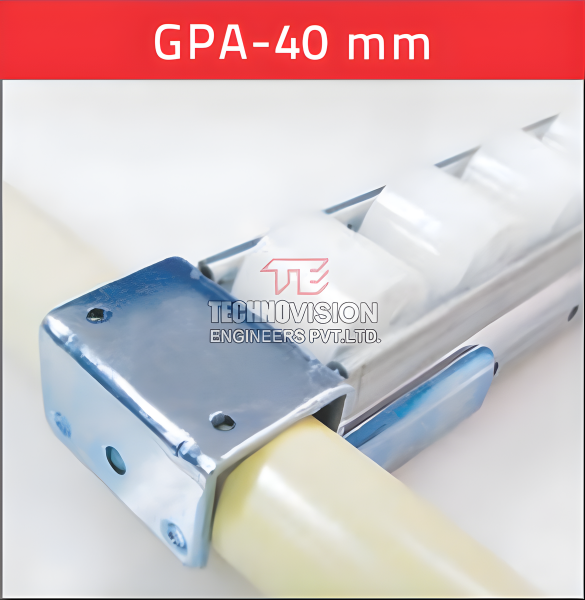

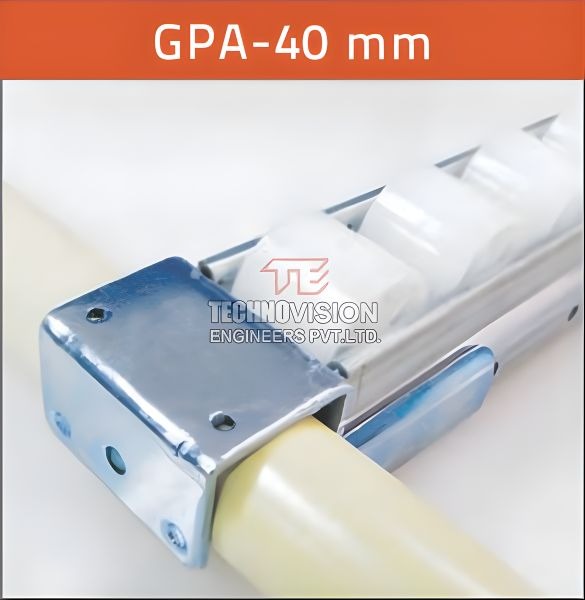

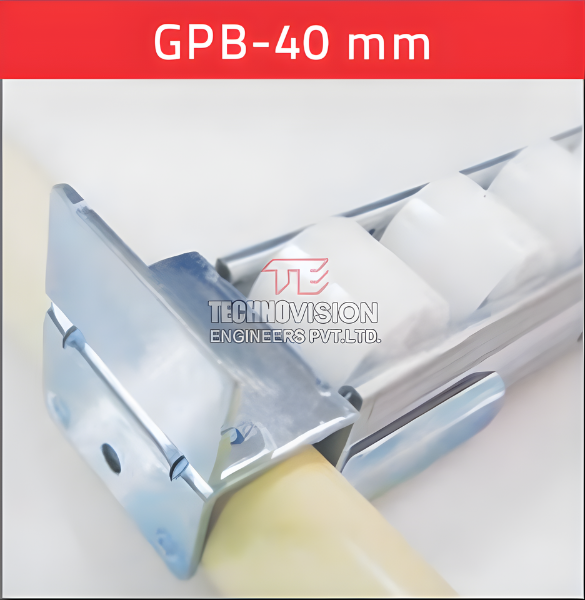

1. 40 Series Placons — 40mm Roller Track
Our 40mm roller track is designed for lighter loads like cartons, trays, and smaller components across assembly areas, conveyor lines, and flow racks. Well-suited to warehousing, shipping, and assembly operations where space is at a premium and throughput needs to remain consistent. Easy to install and integrate into existing pipe and joint or racking structures.

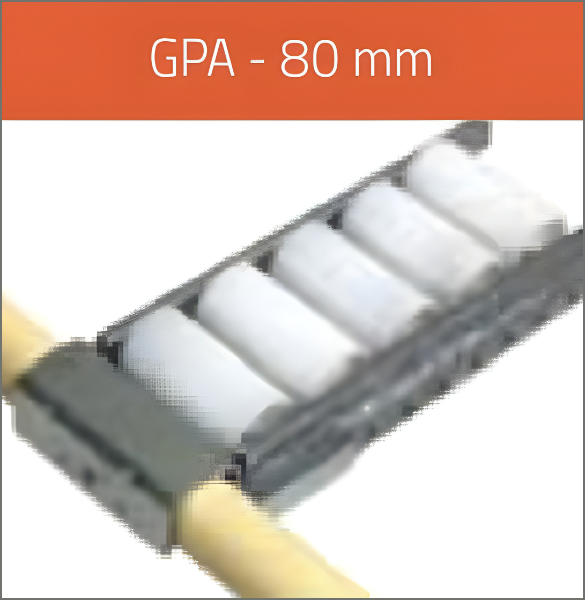

2. 80 Series Placons / 80mm Roller Track
Our 80mm roller track is built for heavier or bulkier loads, providing greater roller spacing and load-bearing capacity. The wider pitch makes it suitable for larger cartons, totes, and heavier components in distribution centres, manufacturing lines, and multi-level storage systems.

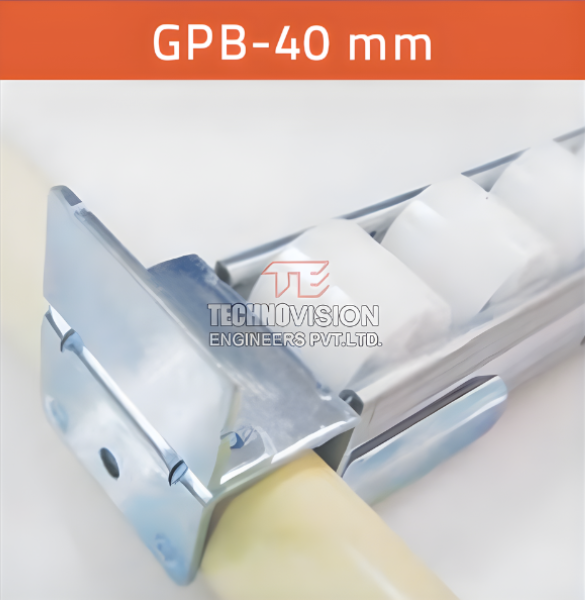

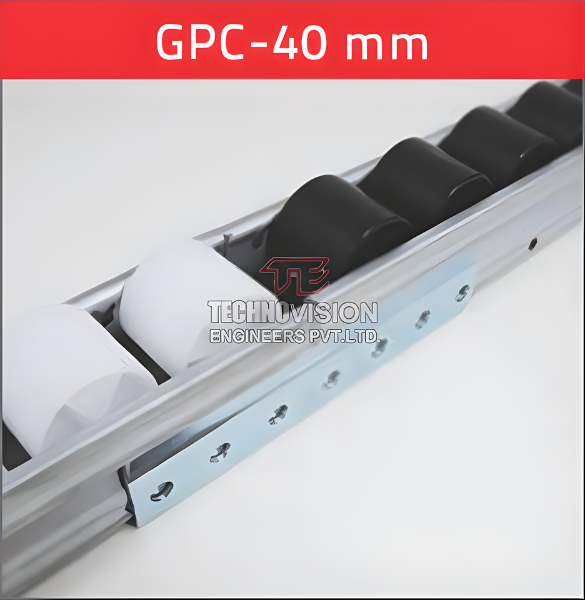

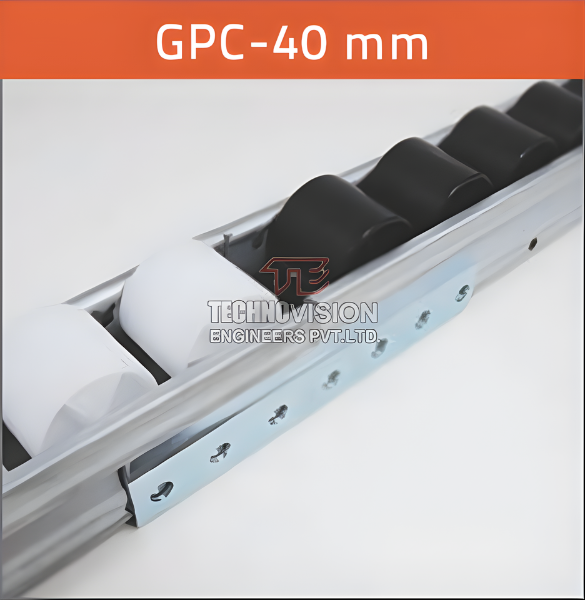

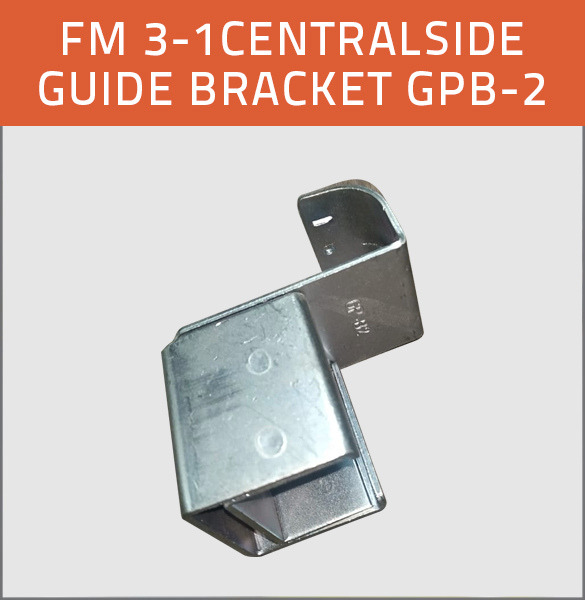

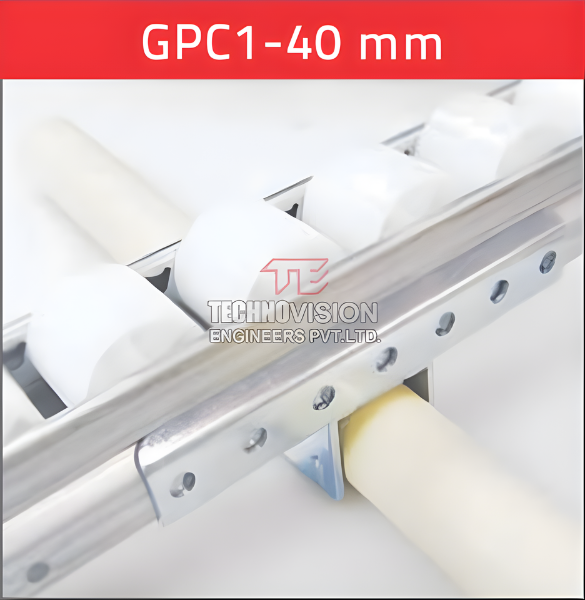

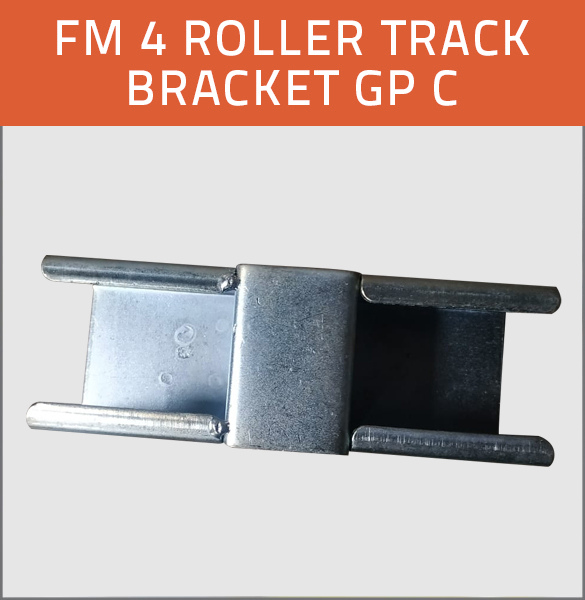

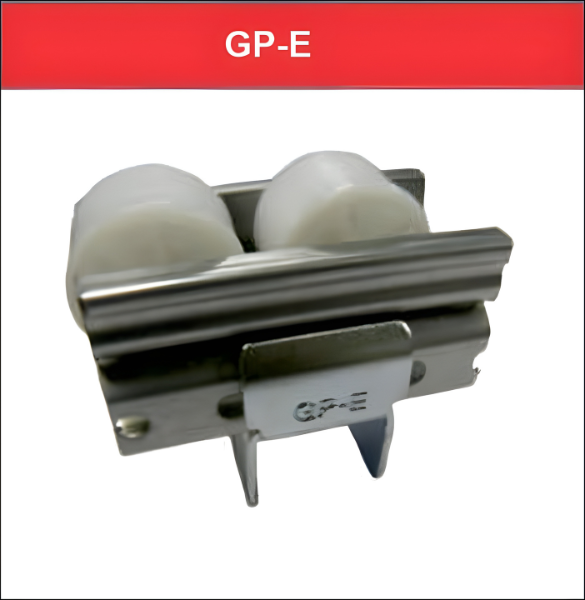

Both systems are available with roller track mount brackets and slide brackets for secure integration into racks, workstations, and modular structures.
Key Features
- Gravity-driven, so no motor or power is required during operation
- Small wheel pitches for uniform load distribution
- Available in 40mm and 80mm configurations for different load sizes
- Compatible with roller track mount brackets and slide brackets
- Integrates with Technovision’s storage rack, pipe and joint systems
Applications
Roller tracks are widely used in FIFO flow racks, assembly line feeding stations, warehouse storage bays, distribution centre sortation systems, and any application where components or goods need to move forward automatically as stock is consumed.
Frequently Asked Questions
What is the difference between 40mm and 80mm roller tracks?
The 40mm roller track is designed for lighter, smaller loads such as trays and small cartons. The 80mm roller track offers a wider roller spacing for heavier or bulkier items. The right choice depends on the weight and footprint of the goods being handled, our team can advise based on your application.
Do roller tracks require a power supply?
No. Our roller tracks are entirely gravity-driven. Goods move forward along the track by their own weight, with no motor, drive, or electrical components required.
Can roller tracks be integrated into existing rack or storage systems?
Yes. Our placons are designed to integrate with our storage racks, pipe and joint structures, and modular workstations using standard mount and slide brackets.
Where are your roller tracks manufactured?
All roller tracks are manufactured at our facility in Pune, Maharashtra, and supplied to industries across India.

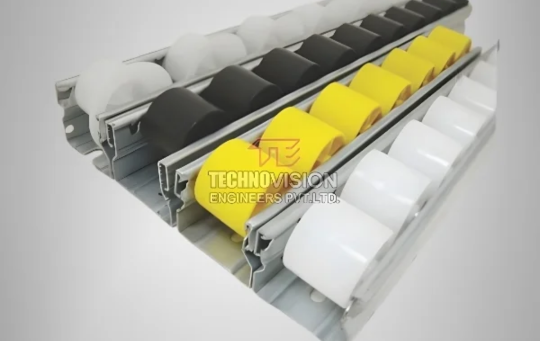

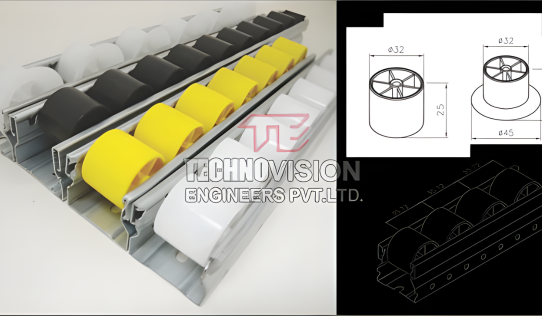

40 Series Placons / 40mm Roller Track
We are a best leading manufacturer and supplier of 40mm roller track in Pune, Maharshtra. This 40mm roller track can be used to build time-saving conveyor lines, flow racks and assembly areas. They are efficient for use in warehousing, shipping and assembly operations.
Product Details
| Roller Track Width | 40mm |
| Roller Width | 25mm |
| Roller Diameter | 32mm |
| Standard Length | 4m |
| Roller Material | PP |
| Colour | White, Black, Yellow |
| Track Material | GI |
| Brand | Technovision |
| Condition | New |

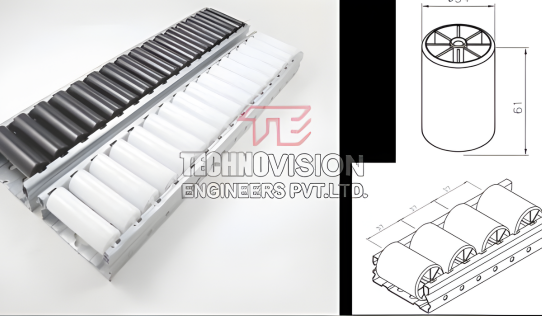

80 Series Placons / 80mm Roller Track
We are a best leading manufacturer and supplier of 80mm roller track in Pune, Maharshtra. Our 80mm roller track is made with the best quality of material.
Product Details
| Roller Track Width | 80mm |
| Roller Width | 61mm |
| Roller Diameter | 34mm |
| Standard Length | 4m |
| Roller Material | PP |
| Track Material | GI |
| Colour | White, Black |
| Brand | Technovision |
| Condition | New |
